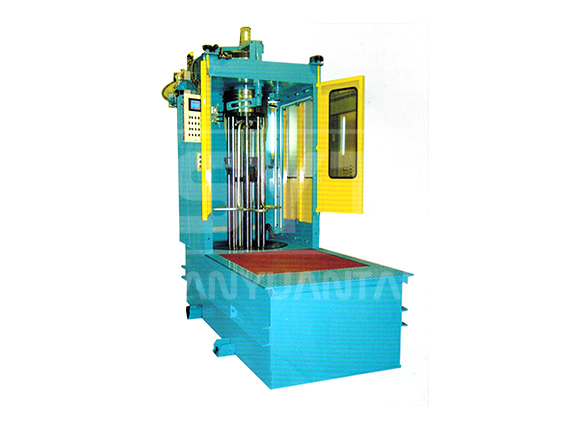

Your are here: Home > Products > Pay-off & Take-UP > IVC Vertical take-up
Wire diameter:2.5-6.0mm
Max Speed:400m/min
Block Dramerer:550/650/750mm
Maximum weight:1000 KG
Pay-off Machine is used in paying out the wires to the related machine. Take-up Machine is used in taking up the wires from the related machine into Spool or Coil. They are usually used with Drawing machine, Stranding machine, Wrapping machine, Rewinding machine, Pickling Line etc..
| NO | DETAIL CONTENT | TECHNICAL DATA |
| 1 | Wire Dramerer | 2.6-6.0mm |
| 2 | Max Speed | 400m/min |
| 3 | Block Dramerer | 550/650/750mm |
| 4 | Max Weight | 1000 KG |
Bear the weight of 2.5 tons wire rod, pay off the wire continuously, involve the button of start, stop,emergency stop.
We can put the line machine design and manufacture according to different types of customer requirements
Main Power:1.5KW 6P
Spool Bobblin:280/355 mm
Take up Motor:1.5KW
Speed:300-500 m/min
Wire diameter:2.5-6.0mm
Maximum take-up speed:DV 120
Drum diameter:600/800mm
Maximum weight:2500 KG
Wire diameter:0.2～1.0mm
Max Speed:500 m/min
Block Dramerer:150/250/300/400mm
Maximum weight:50～300 KG
Wire diameter:2.5-6.0mm
Max Speed:400m/min
Block Dramerer:550/650/750mm
Maximum weight:1000 KG
